버스 에어컨

SHA-203A

본문

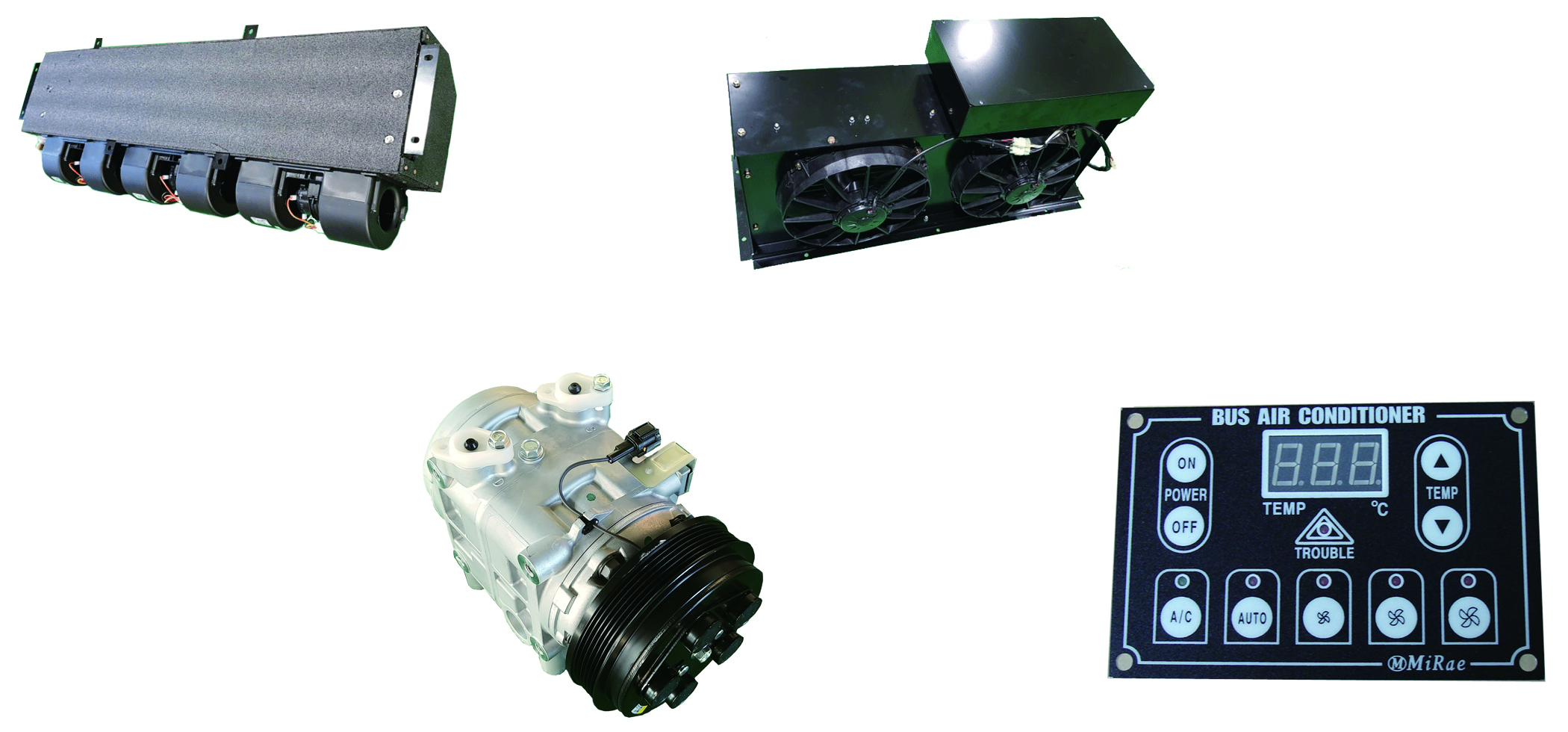

SHA-203A
Roof-in Bus Air Conditioner

Dimension
Specification
Cooling Capacity Refrigerant Evaporator Condenser Compressor
14,000 kcal/h R134a Cu Tube & Al Fin
Blower Motor: 3 double
Air Flow: 2,700 m³/h
Power Consumption: 60 A / DC 12 V
Weight: 35 kg
Cu Tube & Al Fin
Fan Motor: 2 pcs
Air Flow: 4,800 m³/h
Power Consumption: 42 A / DC 12 V
Weight: 41 kg
TM31 / 10 Cylinders
Displacement: 313 cc/rev
Max Speed: 6,000 rpm
Refrigerant: R134a
Lubricant: 100 PG 500 +30 cc
Magnetic Clutch: 3.75 A / DC 12 V
